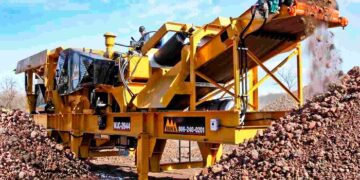

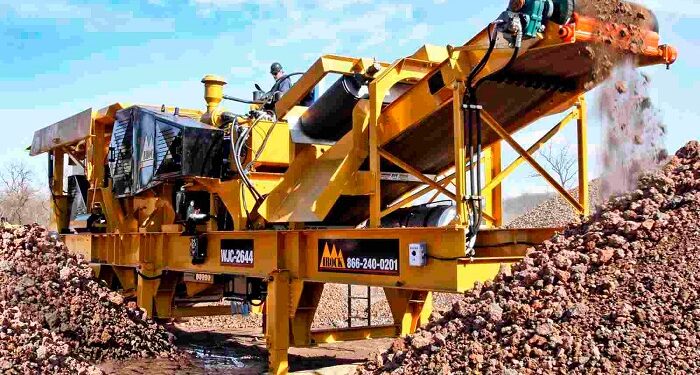

Crushing equipment is widely used in various industries. It allows you to obtain smaller fragments.
Crushing equipment is essential in a variety of industries for reducing large materials into smaller, more manageable pieces. This process is critical in mining, construction, and recycling operations. Various types of crushing equipment are designed to handle specific tasks, offering different capabilities and advantages. In this article, we will explore the main types of crushing equipment, their differences, and their areas of application.
Types of Crushing Equipment
1. Jaw Crushers
Description: Jaw crushers use a pair of opposing jaw plates to crush materials. One jaw remains stationary while the other moves back and forth.
Advantages:
- High efficiency and large crushing ratio
- Suitable for hard and abrasive materials
- Simple structure, easy maintenance
Applications:
- Mining (primary crushing)
- Construction materials (concrete and asphalt)
- Recycling (demolition waste)
2. Gyratory Crushers
Description: Gyratory crushers feature a concave surface and a conical head, both of which are typically lined with manganese steel. The inner cone oscillates to crush materials.
Advantages:
- High throughput
- Suitable for primary crushing of various hard ores
- Consistent product size
Applications:
- Large-scale mining operations
- High-capacity crushing plants
3. Cone Crushers
Description: Cone crushers operate by squeezing the material between an eccentrically gyrating spindle and a concave hopper. As the spindle oscillates, it crushes the material against the hopper.
Advantages:
- High productivity and efficiency
- Suitable for secondary, tertiary, and quaternary crushing stages
- Versatile in handling various materials, including hard rocks
Applications:
- Aggregates production
- Mining (secondary and tertiary crushing)
- Road building
4. Impact Crushers
Description: Impact crushers use impact rather than pressure to crush materials. The material is fed into a chamber containing a high-speed rotor with hammers or blow bars that impact and shatter the material.
Advantages:
- High reduction ratios
- Produces uniform, cubical-shaped product
- Effective for both soft and medium-hard materials
Applications:
- Quarrying and aggregates
- Recycling concrete and asphalt
- Road construction
5. Hammer Crushers
Description: Hammer crushers consist of a rotor equipped with hammers that rotate at high speed to crush the material. The crushed material is then thrown against breaker plates.
Advantages:
- Simple design and operation
- High reduction ratio
- Suitable for dry and wet crushing
Applications:
- Cement industry
- Coal mining
- Small-scale mining and construction
6. Roller Crushers
Description: Roller crushers feature two parallel cylinders that rotate in opposite directions to crush material between them.
Advantages:
- Produces minimal fines
- Suitable for friable materials
- Controlled size reduction
Applications:
- Industrial minerals
- Recycling operations
- Crushing of soft and medium-hard materials
7. Vertical Shaft Impact (VSI) Crushers
Description: VSI crushers use a high-speed rotor and anvils for impact crushing rather than compression. They are typically used in the last stage of the crushing circuit.
Advantages:
- High-quality product with good shape
- High reduction ratios
- Can handle abrasive materials
Applications:
- Sand making
- Aggregates shaping
- Industrial minerals
Differences Between Crushing Equipment
Each type of crushing equipment has its unique design and method of reducing material size, which makes them suitable for different applications:
- Jaw Crushers vs. Gyratory Crushers: Jaw crushers are more versatile for smaller-scale operations, while gyratory crushers are better for large-scale primary crushing.
- Cone Crushers vs. Impact Crushers: Cone crushers are preferred for harder, abrasive materials, while impact crushers are ideal for softer, non-abrasive materials with a need for high reduction ratios.
- Hammer Crushers vs. Roller Crushers: Hammer crushers are simpler and less expensive but produce more fines, while roller crushers provide controlled size reduction with minimal fines.
- VSI Crushers: Specialized for producing high-quality cubical aggregates and sand, often used in the final crushing stage.
Areas of Application
- Mining: High-capacity primary crushers like gyratory and jaw crushers are essential, while cone crushers are vital for secondary and tertiary crushing stages.
- Construction: Jaw and impact crushers are commonly used to break down construction materials like concrete and asphalt.
- Recycling: Impact and jaw crushers are prevalent in recycling operations, efficiently handling materials such as concrete, asphalt, and glass.
- Aggregates Production: Cone, VSI, and impact crushers play key roles in producing various sizes and shapes of aggregates for construction projects.
- Industrial Applications: Hammer and roller crushers are used in industries like cement production and chemical processing.
In conclusion, the choice of crushing equipment depends on the material characteristics, desired product size, and specific requirements of the operation. Understanding the differences and applications of each type ensures optimal efficiency and productivity in various industries.
